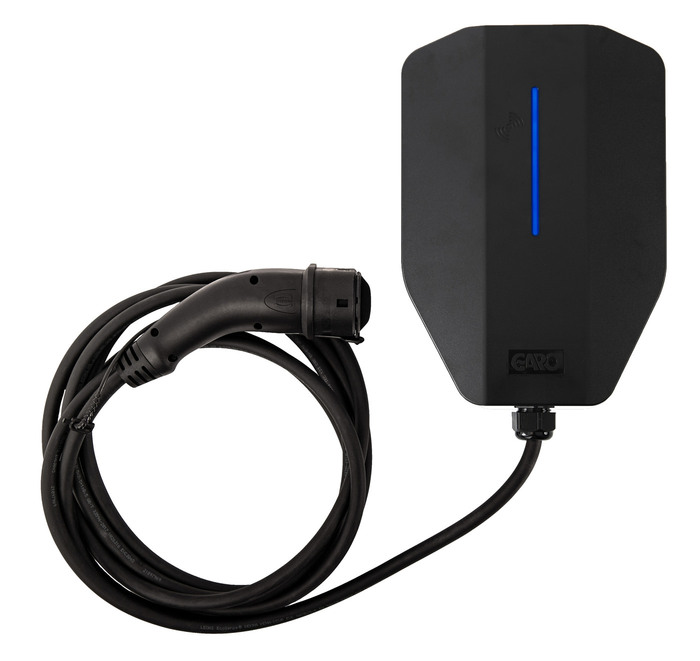

Entity Home Wallbox
Entity Home Wallbox. 5-year warranty in SE. A future-proof charging station that contains all necessary components: Installation console, charging unit and front panel. Entity Home has a fixed 5m type 2 cable. RFID reader. Integrated electronic meter Integrated residual current device (RCD) with an all-pole mechanical circuit breaker for AC and DC leakage detection that meets all requirements according to IEC62955. The units of the Entity family can communicate with each other via Ethernet or Wifi-Mesh. Connects to the internet via Ethernet or Wifi. The box has a PLC chip enabling ISO15118 in future software upgrades. ISO15118 can enable functions such as Plug&Charge. The Entity Home shares the same platform as Entity Compact and therefore use the same installationconsole. NOTE: Complete Wallbox.
GARO Entity Home Charging station 14kW 3-phase 20A fixed cable 5meter
E-number
2700955
2700955
Article number
354575
354575
| Type designation | ECCSC50320FIMI |
|---|---|
| Rated current [A] | 20 |
| Meter | Yes |
| Materials | Plastic |
| Colour | Black |
| Rated voltage [V AC] | 230/400 |
| AC/DC output | Type2 fixed cable |
| Cable [m] | 5 |
| Package size [pcs] | 1 |
| Standard | EN61851-1, IEC62955, IEC61439-7, EN61008-1, EN60898-1, ISO15118 |
| Netweight [kg] | 4.10 |
| Frequency [Hz] | 50 |
| Temperature range [C] | -40C...+40C |
| Mounting method | Wall mounting |
| Degree of protection [IP] | 54 |
| Storage temperature [C] | -40C...+40C |
| Phases | 3 |
| RFID | Yes |
| Impact strength | IK10 |
| RCCB/RCBO | Yes |
| Charging current [A] | 0-20 |
| Locks | Yes |
| Short-circuit current [kA] | 10 |
| RAL-nummer | RAL9011 |
| Effekt [kW] | 13,9 |
| Name | WALLBOX ENTITY HOME 14 5M-S |
|---|---|
| E-number | 2700955 |
| Article number | 354575 |
